Precision 3D Scanning & Reverse Engineering
- Capabilities
Inspection-grade capture, engineer-led modeling.
3D Scanning
Handheld laser & structured-light capture down to 25 µm.
Reverse Engineering
From point cloud to parametric solid — feature-based, editable.
Reverse Engineering
STEP / IGES / native files ready for manufacturing.

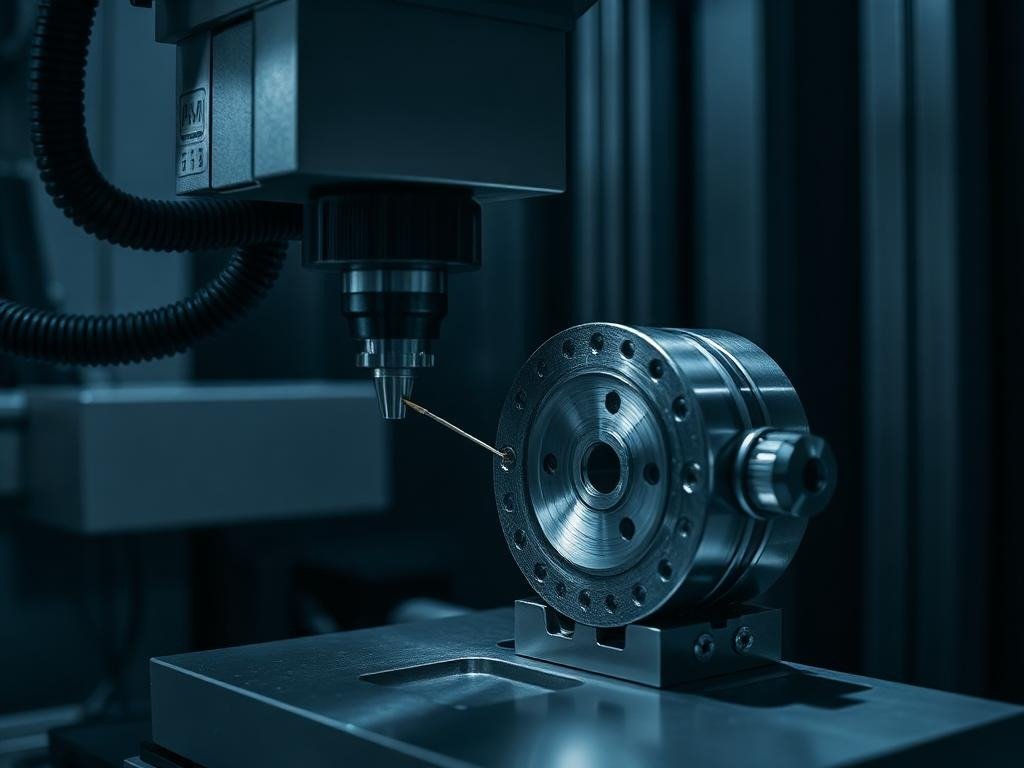

Inspection & QA
First-article, in-process, and certification reports.
Inspection & QA
Color-mapped comparison of scan-to-nominal geometry.
Technical Drawings
GD&T-compliant 2D drawings derived from the model.
- Workflow
A repeatable pipeline from part to production.
A complete physical-to-digital workflow under one roof — from initial scan to documented, manufacturable CAD.
Scan
Capture the part. Handheld or structured-light, optimized for geometry.
Process
Align, decimate, and mesh the point cloud into a watertight reference.
Process
Rebuild the model as a feature-based, parametric solid ready to manufacture.
Inspect
Compare scan vs. nominal, generate deviation maps, deliver QA reports.
- Recent Work
Selected projects
A complete physical-to-digital workflow under one roof — from initial scan to documented, manufacturable CAD.

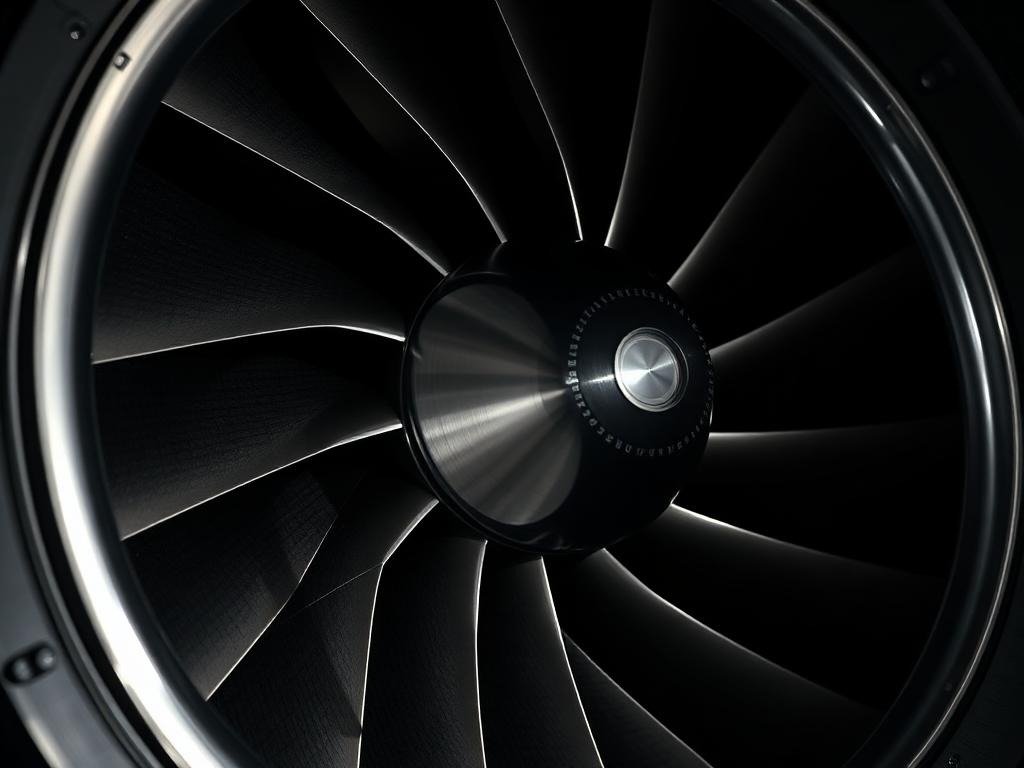

Compressor Wheel — Reverse Engineered
Recreated a discontinued compressor wheel from a single physical sample.

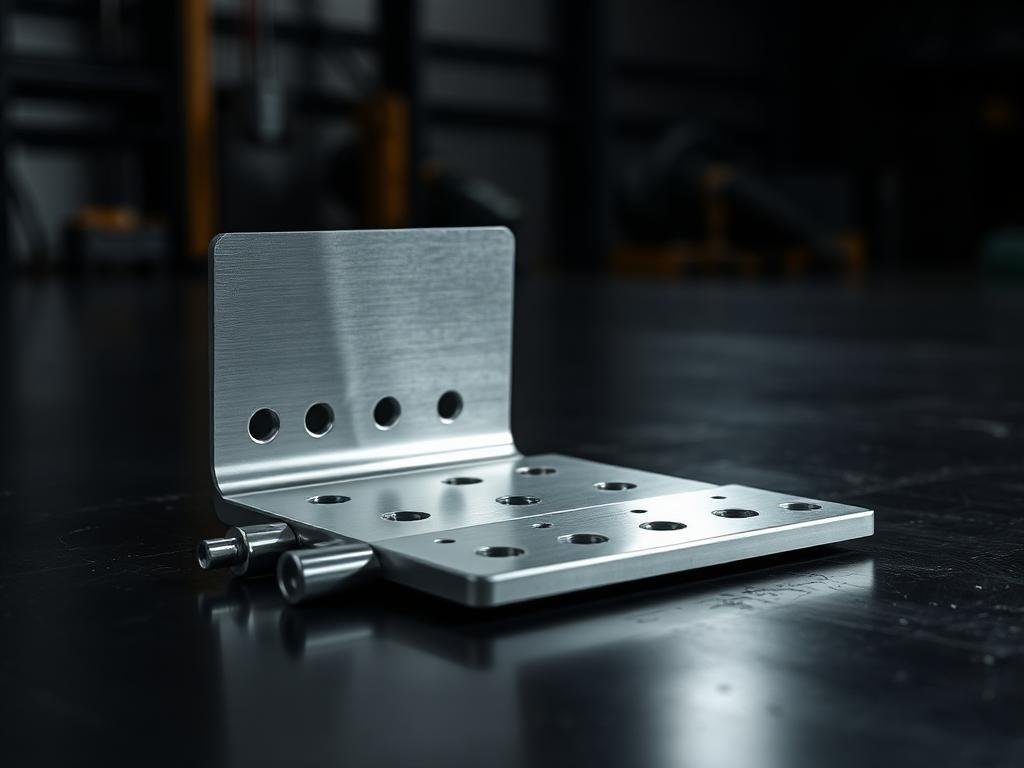

Structural Bracket — First Article Inspection
Full FAI report against nominal CAD with GD&T evaluation.

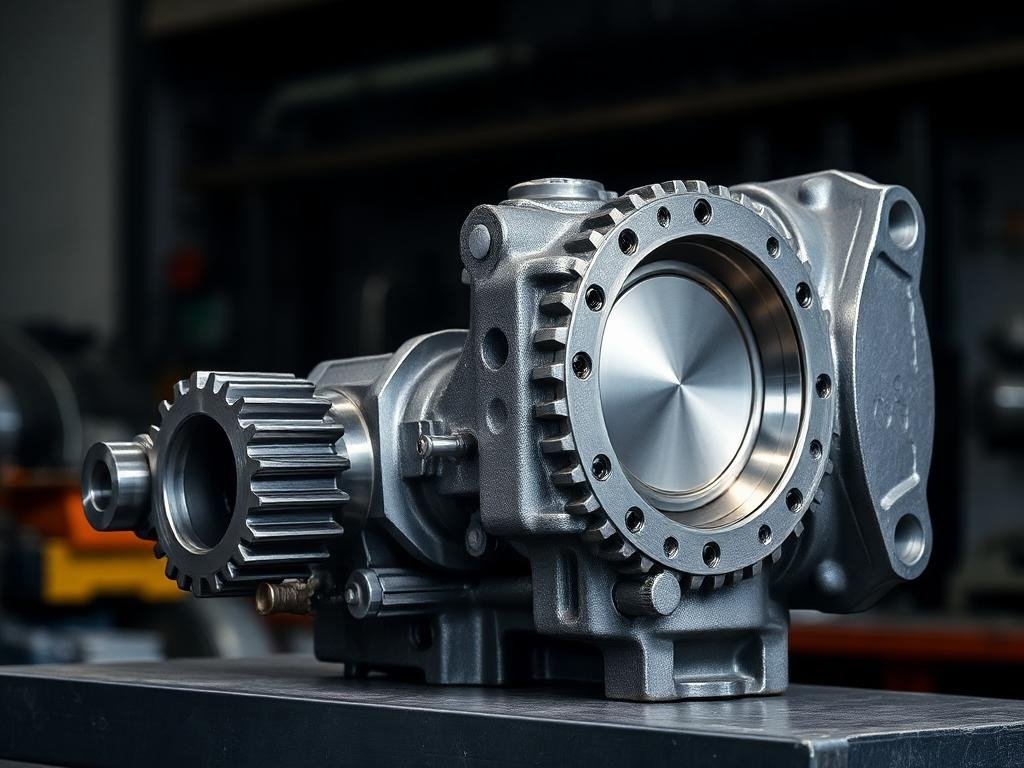

Industrial Gearbox Housing — CAD Rebuild
Cast housing digitized and rebuilt as parametric solid for re-manufacture.
- Trust & calibration
Calibrated hardware. Certified software. Traceable reports.
Software
Hardware
- Industries
Trusted across regulated, high-tolerance sectors.
Aerospace
Sector 01
Automotive
Sector 02
Industrial
Sector 03
Energy
Sector 04
Medical
Sector 05
Defense
Sector 06
- Ready when you are
